SD5913 · WEEK 03 · WORDS

Words you will hear today

• data — numbers somebody measured and published. JSON — a common file format for them: lists and dicts, written out as text.
• parse — turn a file of text into lists and numbers you can use. cache — fetch once, save the file, read the file from then on.
• plot — draw numbers as a picture. axis — one direction of the picture, and what it means: hour across, metres up.
• vector — a list of numbers where each position means something: (hour, height). transformation — a rule that turns one vector into another.
• frame — one picture of an animation. library — code somebody else wrote, that draws for you.
• iterate — run the rule again on its own result. chaos — a rule that doubles every error, so a tenth of a degree becomes the whole circle.

Every word from the slides, in plain language: sd5913.github.io/teaching/glossary.html

01 · ASSIGNMENT 1

It closed on Sunday

Marking starts this week. What a passing repo looked like, in three lines:

• Two files at the top level, with those exact names: README.md and PROCESS.md. A PROCESS.md in a subfolder is a missing PROCESS.md.
• A References heading with real entries under it. It is the check's most common complaint, and the cheapest one to have fixed.
• Commits on more than one day. One commit called Initial commit says the essay arrived from somewhere else, whether or not it did.

Late work is marked, with the late penalty in the course outline. Submit it anyway — a late repo is worth more than no repo.

01 · WEEK 02

Last week, if you want it again

Week 2 is all in the browser: sd5913.github.io/teaching/week02/. Every drill still runs, still checks itself, still keeps your answer.

• The tutorial week02/README.md is the long version: the faults and the spec exercise.
• uv got one mention. It runs everything in today's tutorial, and reference/uv.md is the ten minutes on what it does.

Two facts from last week come back today, on the slides where they are needed.

01 · LOOSE ENDS · THE MARK

56 marks. Two at a time, pick the better one: pfad.ait4x.org/vote — the picture is the link too.

QUESTION · WORD CLOUD

Name a natural phenomenon.

One or two words. Tide, rain, wind, moon, birds, earthquakes. Traffic is not one.

ClassPoint · word cloud — answer on the projector

02 · ASSIGNMENT 2

Numbers about a natural phenomenon, and a picture

OBTAIN

From a file somebody publishes

JSON, CSV or an HTML page. Somebody already did the measuring — the Observatory, the USGS, Wikipedia. The raw file you fetched is committed in data/.

MAKE

A picture from them

Informative, artistic, or animated. Any library. The script says what it needs, so it runs on somebody else's machine.

SAY

What it is, and where it came from

README.md: the phenomenon, the source as a link, the picture, how to run it. PROCESS.md as before. Commits over more than one day.

DUE

Sunday 4 October, 23:59

10% of the course. A repo on your own account, the URL on Canvas. Set today, so you have two and a half weeks.

02 · ASSIGNMENT 2

What a finished repo looks like

A folder is a list of names. A path is an address: tidal-clock/data/tides.json. . is here, .. is the folder above.

Names that start with a dot are hidden by Finder and Explorer — not by git, not by VS Code. Every repo you make has three.

README.md the phenomenon, the picture. PROCESS.md the tools. data/ the raw file, so it runs offline. out/ the picture.

Start from the template: sd5913/assignment-2-template → Use this template. pfad/reference/files.md is the ten-minute version.

tidal-clock/
├── .git/             the history. never open it
├── .github/
│   └── workflows/
│       └── check.yml what GitHub runs
├── .gitignore        never committed: site/
├── README.md
├── PROCESS.md
├── fetch.py          HERE / "data" / FILE
├── plot.py
├── data/             the raw file
└── out/              the picture

02 · DRILL · A PATH

Predict the path

Every script in the tutorial starts like this: HERE is the folder the script is in. / joins two paths; .parent is .. in code; .name is the last piece.

Predict the three lines. Then fix DATA: the raw file is in data/ beside out/, not inside it.

02 · ASSIGNMENT 2

Name it properly, before you start

We said this in week 2 and it applies from today: the repo name is the first thing anyone sees, and it is in your portfolio for longer than it is in my gradebook.

• Bad: assignment2 · ass2 · data-viz-final-FINAL
• Good: tidal-clock · quakes-this-month · rainfall-kowloon

Short, lowercase, hyphens, and it says what the thing does. You can rename a GitHub repo later, but the URL you put on Canvas will not follow.

03 · THE NUMBERS

Twenty-four numbers.

How many ways can you look at them?

03 · THE NUMBERS

The tide at Quarry Bay, today

# Hong Kong Observatory, station QUB, 17 September 2026
# metres above chart datum, one per hour, 01:00 to 24:00

heights = [2.19, 2.09, 1.90, 1.63, 1.36,
           1.14, 1.05, 1.08, 1.15, 1.24,
           1.29, 1.35, 1.44, 1.47, 1.47,
           1.42, 1.38, 1.38, 1.46, 1.65,
           1.86, 2.04, 2.14, 2.17]

print(len(heights), min(heights), max(heights))

data.weather.gov.hk · one row of a file with 365 of them · the tutorial fetches it, this deck quotes it

03 · D1 · A LOOP

Once for each number

A loop does the indented lines once for every item. enumerate hands you the position too, and start=1 makes the first hour 1, not 0.

How many lines will it print? Say it, then run it.

Now change one character: print the hours under 1.1.

03 · A LOOP

That is a loop, and that is all of it

for hour, height in enumerate(heights, start=1):

• once for each item — twenty-four numbers, twenty-four turns
• the names change each turn — hour and height mean something different every time round
• the indented lines are what happens — the four spaces are the loop

Everything else today is this, with something other than print at the end.

03 · D2 · A FUNCTION

It prints None twenty-four times

bar is a rule with a name: a height goes in, a row of # should come out. "#" * 11 is eleven hashes — * repeats text.

Run it. One word is missing. Find it, and make it print bars.

03 · THE FIRST PICTURE

No library drew this

Twenty-four rows of hashes, one call of bar each. It is a bar chart, and it is nine lines of Python.

Quarry Bay, 17 September 2026 · teal is low water at 07:00, orange is high water at 01:00

03 · A FUNCTION

A rule with a name

def bar(height): — something goes in, something comes out.

• The name in the brackets is a name for whatever you hand it. It exists only inside.
• No return, nothing comes out. Python hands back None, silently, and your picture is empty for a reason you cannot see.
• Four spaces of indentation say which lines are inside the function.

This is the mistake generated code makes more than any other. You just found it.

03 · D3 · HIGHEST

When is high water?

A loop that remembers: keep the biggest height you have seen, and the hour it happened. best carries from one turn to the next — that is state.

Fill in the ___. Predict the answer first — you have seen the picture.

03 · THE TOOLKIT

That was the whole toolkit

A loop over the numbers. A function per number. That is it.

Everything for the rest of today is those two, with something else at the end of the loop: a library drawing a line instead of print writing hashes.

The picture is the check. If the bars had come out flat, you would have known — which is more than most tests tell you.

04 · THE SOURCE

Somebody already did the measuring

# one address, and 365 days come back
https://data.weather.gov.hk/weatherAPI/opendata/opendata.php
    ?dataType=HHOT&station=QUB&year=2026&rformat=json

# what it says, with most of it cut out
{"fields": ["MM", "DD", "01", "02", ..., "24"],
 "data": [["01", "01", "0.68", "0.64", ..., "1.09"],
          ["01", "02", "0.69", "0.46", ..., "0.85"],
          ["09", "17", "2.19", "2.09", ..., "2.17"]]}

HHOT = hourly heights of tide · QUB = Quarry Bay · the whole year is 66 KB

04 · JSON

A dict of lists of lists, and one way in

Square brackets ask a dict and a list the same question: give me the one at ___. A dict answers to a name, a list to a position, counting from 0.

• d["data"] — the list of 365 rows
• d["data"][259] — row 259, which is 17 September
• d["data"][259][2] — the first hour of that row: "2.19"

Three brackets, three steps, and you are at one number. Which is not yet a number — look at the quotes.

04 · JSON · MULTIPLE CHOICE

What type is d["data"][259][2]?

A int

B float

C str

D list

ClassPoint · multiple choice — answer on the projector

04 · D4 · READ THE FILE

The quotes are still there

Two rows of the real file. d["data"][1] is the 17th; position 8 in a row is 07:00, because 0 and 1 are the month and the day.

Make it print the 07:00 height as a number, plus one.

04 · FOUR RULES

Four rules for taking somebody else's numbers

CACHE

Fetch once, keep the file

Fetch, save the raw reply into data/, then parse the file. Your script runs with no internet, and the committed file is what makes the repo reproducible.

HTML

Same idea, messier

No JSON? A web page is a tree, and one line of BeautifulSoup walks it: select("table.wikitable"), then the rows. The typhoon season table on Wikipedia is one.

ROT

Watch the line rot

The tidal-stream endpoint behind week 2's rings moved in 2023 — fetch_tides.py says so in a comment. A cached file outlives the URL it came from.

POLITE

Be polite

A User-Agent that says who you are and what for. One request, not a loop of them. You are a guest on somebody else's server.

05

Dimensions

A CHART TYPE IS A TRANSFORMATION

05 · DIMENSIONS

One number, two numbers, three

1-D

A number on its own

A height. A time. A brightness. All you can do is put it somewhere on a line — or make it a length, which is what bar did.

2-D

Two numbers, and a decision

(hour, height) is a point on a plane. So is (lat, lng), and so is (angle, distance). Same pair, three different pictures.

3-D

Three, and something has to give

(lng, lat, magnitude) on a flat page: two go to position, the third to size, or colour. (r, g, b) is three numbers you see as one colour.

05 · VECTORS

A vector is a list with a meaning per position

(hour, height) — first the hour, then the metres. Swap them and the picture is nonsense, so the order is part of the meaning.

In Python it is a tuple: a list you do not change. Every dot on the right is one.

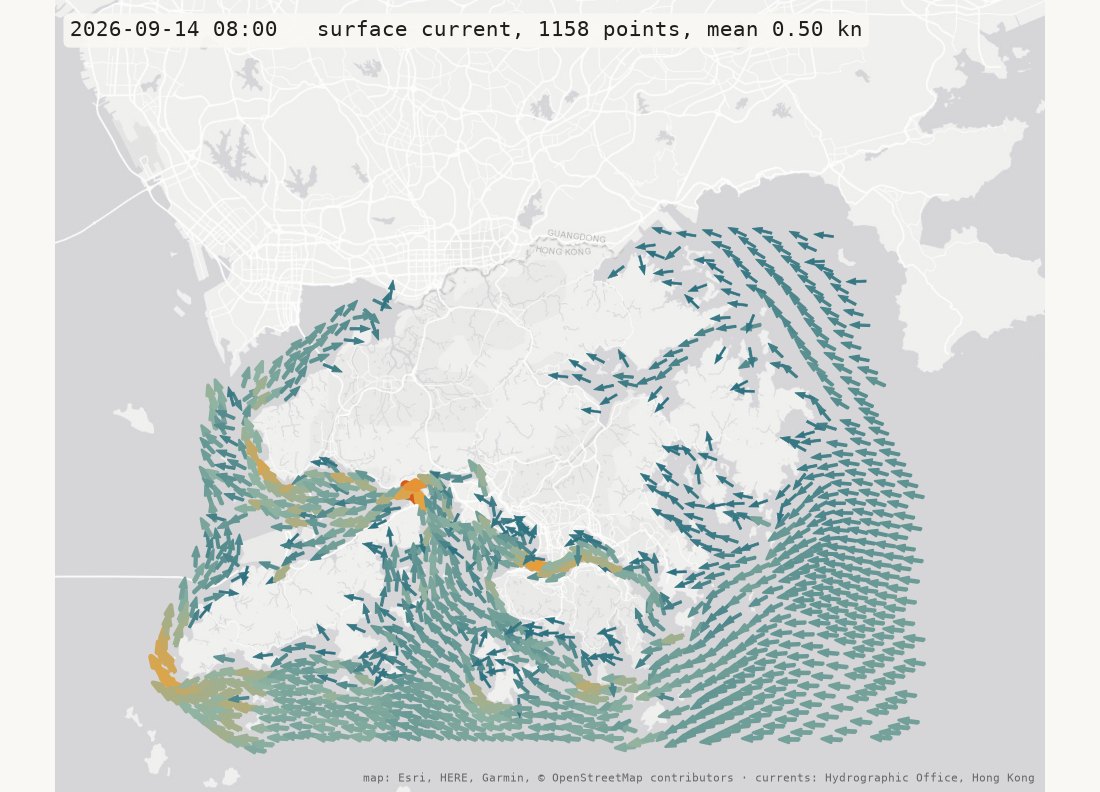

Week 2's rings read (knot, deg) — speed and direction — which is the same idea in polar form.

24 vectors, drawn where they say to draw them

05 · TRANSFORMATIONS

Three rules, three lines each

from math import cos, sin

shape = [(0, 0), (100, 0), (50, 80)]

def move(p, dx, dy):
    return (p[0] + dx, p[1] + dy)

def scale(p, k):
    return (p[0] * k, p[1] * k)

def rotate(p, a):
    return (p[0] * cos(a) - p[1] * sin(a),
            p[0] * sin(a) + p[1] * cos(a))

moved = [move(p, 70, 40) for p in shape]

the faint triangle is the original · a is in radians, so 0.5 is about 29°

05 · D5 · MOVE THE SHAPE

Predict the three points

One rule, applied to every point by a loop written on one line.

Say the three pairs out loud before you run it. Then fill in the blank.

05 · MATRICES

Those three rules have one name

Rotate-and-scale together is four numbers in a 2×2 table, and the table is the transformation. Put the numbers in, get the moved point out.

• Matplotlib, CSS and p5.js all call it transform. Same idea, three spellings.
• Chaining two of them — rotate, then scale — is one multiplication, done once, then applied to every point.

You do not need the multiplication rule this week. You need to recognise the word when a library or an assistant uses it.

05 · BENT

The same 24 numbers, bent into a circle

the clock is to_xy(hour, height) applied to every pair · midnight at the right, the day running clockwise

05 · D6 · POLAR TO XY

Round, into flat

The clock in two lines: the hour decides the angle, the height decides the radius. cos and sin turn that pair back into x and y.

One full turn is 24 hours, and a full turn is 2 * math.pi. Fill in the angle.

05 · WEEK 2 WAS THIS

The rings you ran last week were this

tides.py in week 2 drew twenty-four rings of tidal current. Every one of them:

• a circle — to_xy in a loop, 200 times round
• scale — ring n drawn at (n + 1) / 24 of full size
• move — to the centre of the window
• then each vertex pushed by one (knot, deg) vector from the data

You ran it without knowing that. Open pfad/week02/tides/tides.svg again.

the same construction, one ring, the tide height instead of the current

06

Simple rules, complex results

DOUBLE AN ANGLE. SQUARE A POINT. ADD C.

06 · DOUBLE THE ANGLE

Take an angle. Double it. Again.

let start, steps;
function setup() {
  createCanvas(600, 600); noLoop();
  start = createSlider(0, 360, 100, 0.1, 'start');
  steps = createSlider(1, 60, 12, 1, 'steps');
}
function dot(a) {                 // an angle, as a point
  return [300 + 250 * cos(radians(a)),
          300 - 250 * sin(radians(a))];
}
function draw() {
  background(255); stroke(0); noFill();
  circle(300, 300, 500);
  let a = start.value();
  for (let i = 0; i < steps.value(); i++) {
    let b = (a * 2) % 360;        // the rule
    let [x1, y1] = dot(a), [x2, y2] = dot(b);
    stroke(214, 89, 29); line(x1, y1, x2, y2);
    fill(0); circle(x1, y1, 9);
    if (i < 8) text(nf(a, 1, 1), x1 + 8, y1 - 8);
    a = b;
  }
}

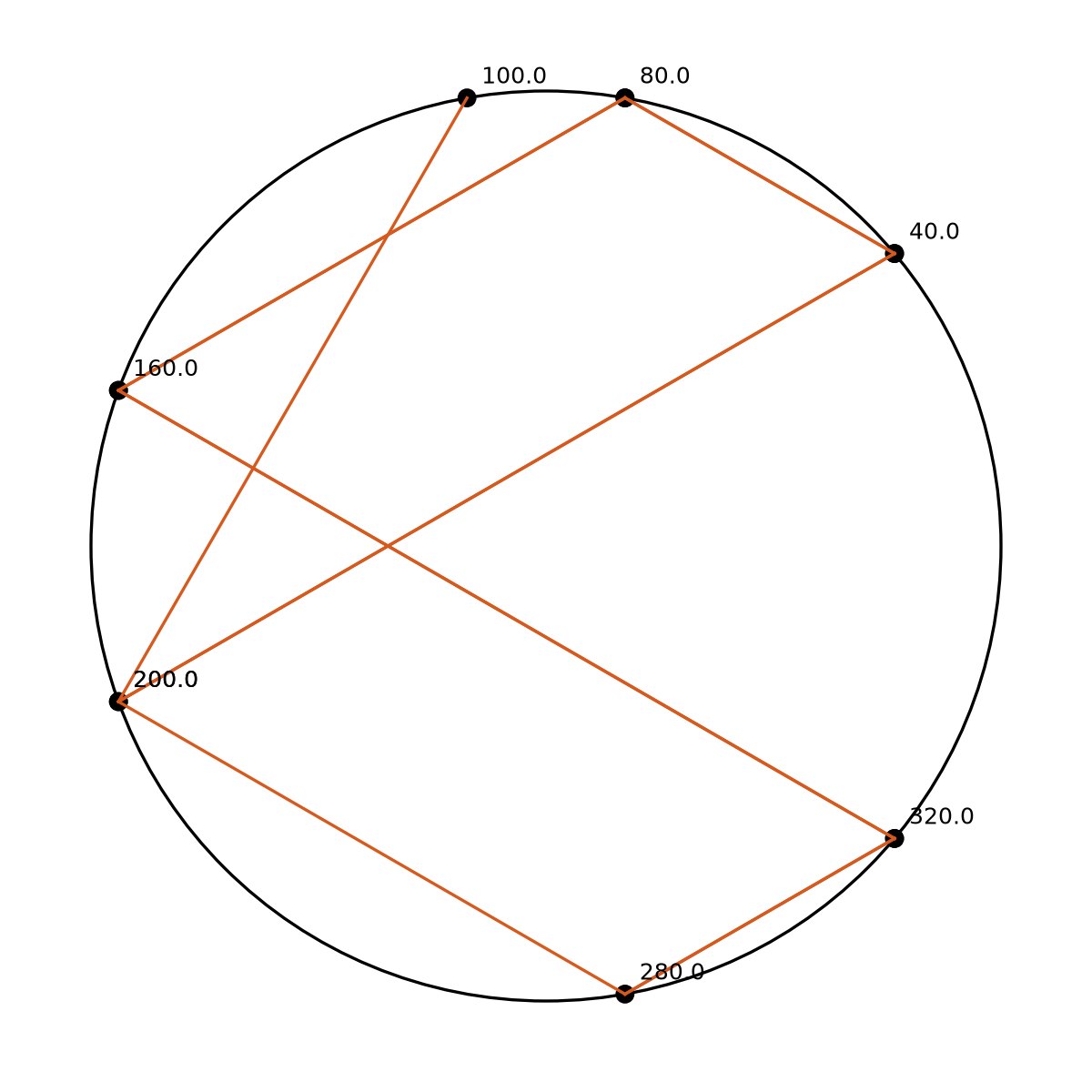

Double the angle, back onto the circle, again. 120: two points forever. 90: stuck at 0 after three. 100: a seven-point star. 100.1: the same star for eight steps, then anywhere.

Open the live sketch › — it steps on its own · drag start

06 · D7 · DOUBLE IT

Which angles come back?

A circle is 360 degrees; % keeps a doubled angle on it.

Say the six numbers before you run it. Then fill in the blank.

Now start at 90. Then 100. Then 100.1 — how many steps before it stops looking like 100?

06 · SQUARE, THEN ADD C

Every point on the plane, thirty times

let cr, ci;
function setup() {
  createCanvas(600, 600); noLoop(); pixelDensity(1);
  cr = createSlider(-1.5, 0.5, 0, 0.01, 'c, real');
  ci = createSlider(-1, 1, 0, 0.01, 'c, imaginary');
}
function stays(x, y, a, b) {      // 30 times: square, add c
  for (let i = 0; i < 30; i++) {
    [x, y] = [x * x - y * y + a, 2 * x * y + b];
    if (x * x + y * y > 4) return false;   // it left
  }
  return true;
}
function draw() {
  let a = cr.value(), b = ci.value();
  loadPixels();
  for (let py = 0; py < 600; py++)
    for (let px = 0; px < 600; px++) {
      let x = (px - 300) / 150, y = (300 - py) / 150;
      let v = stays(x, y, a, b) ? 0 : 255;
      let k = 4 * (py * 600 + px);
      pixels[k] = pixels[k + 1] = pixels[k + 2] = v;
      pixels[k + 3] = 255;
    }
  updatePixels();
}

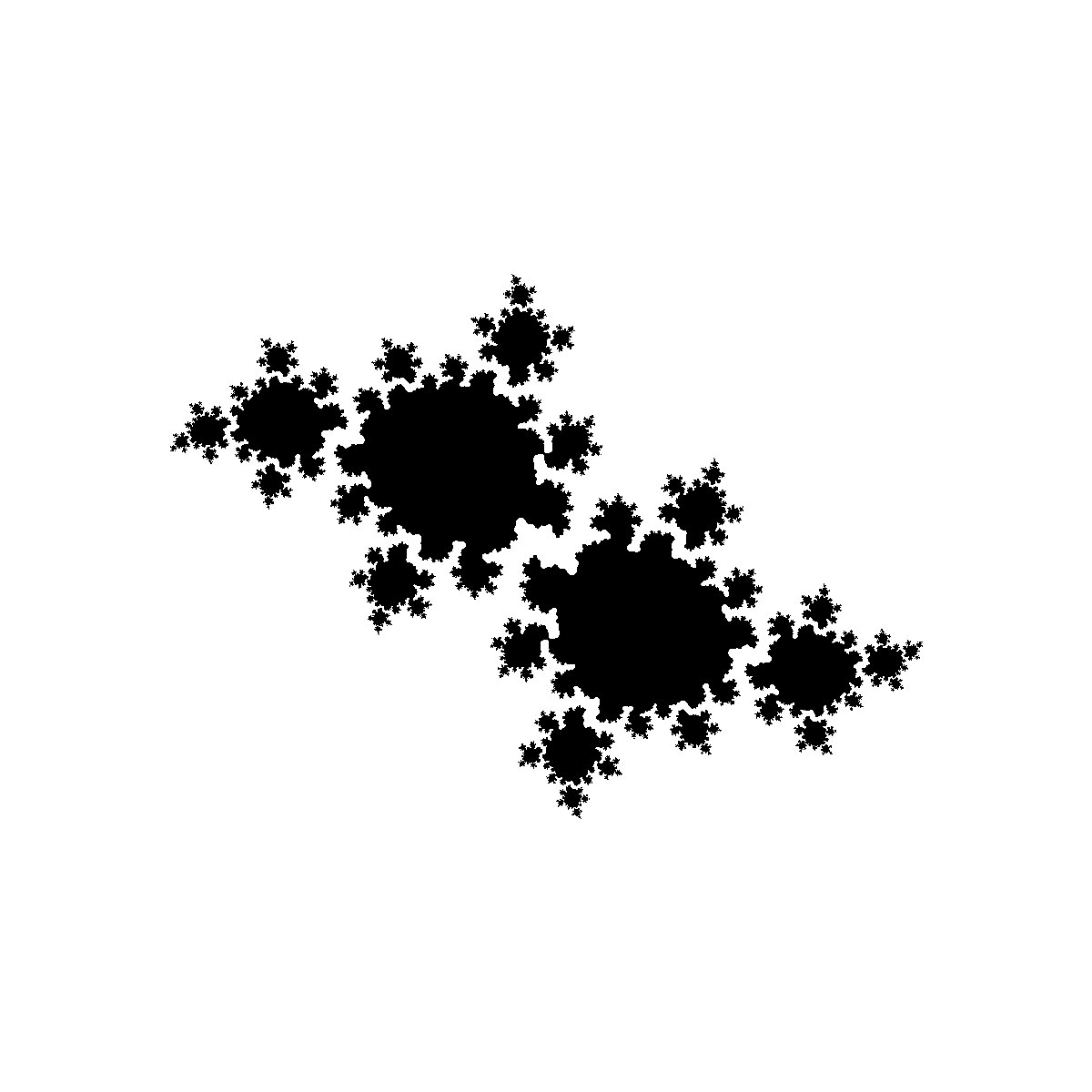

Squaring doubles the angle and squares the length: the x·x − y·y line. c = 0 is a disc. Drag c: −1 pinches it into beads; −0.4 + 0.6i (the still) grows arms; further out, dust.

Open the live sketch › — drag c · the disc bends

06 · ADD COLOURS

How fast a point leaves is a colour

let cr, ci;
function setup() {
  createCanvas(600, 600); noLoop(); pixelDensity(1);
  cr = createSlider(-1.5, 0.5, -0.4, 0.01, 'c, real');
  ci = createSlider(-1, 1, 0.6, 0.01, 'c, imaginary');
}
function gone(x, y, a, b) {       // steps before it leaves
  for (let i = 0; i < 30; i++) {
    [x, y] = [x * x - y * y + a, 2 * x * y + b];
    if (x * x + y * y > 4) return i;
  }
  return 30;                      // never: it is in the set
}
function draw() {
  let a = cr.value(), b = ci.value(); loadPixels();
  for (let py = 0; py < 600; py++)
    for (let px = 0; px < 600; px++) {
      let n = gone((px - 300) / 150, (300 - py) / 150, a, b);
      let k = 4 * (py * 600 + px), v = n == 30 ? 0 : 60 + n * 6;
      pixels[k] = v * 1.1; pixels[k + 1] = v * 0.75;   // black,
      pixels[k + 2] = v * 0.4; pixels[k + 3] = 255;    // to orange
    }
  updatePixels();
}

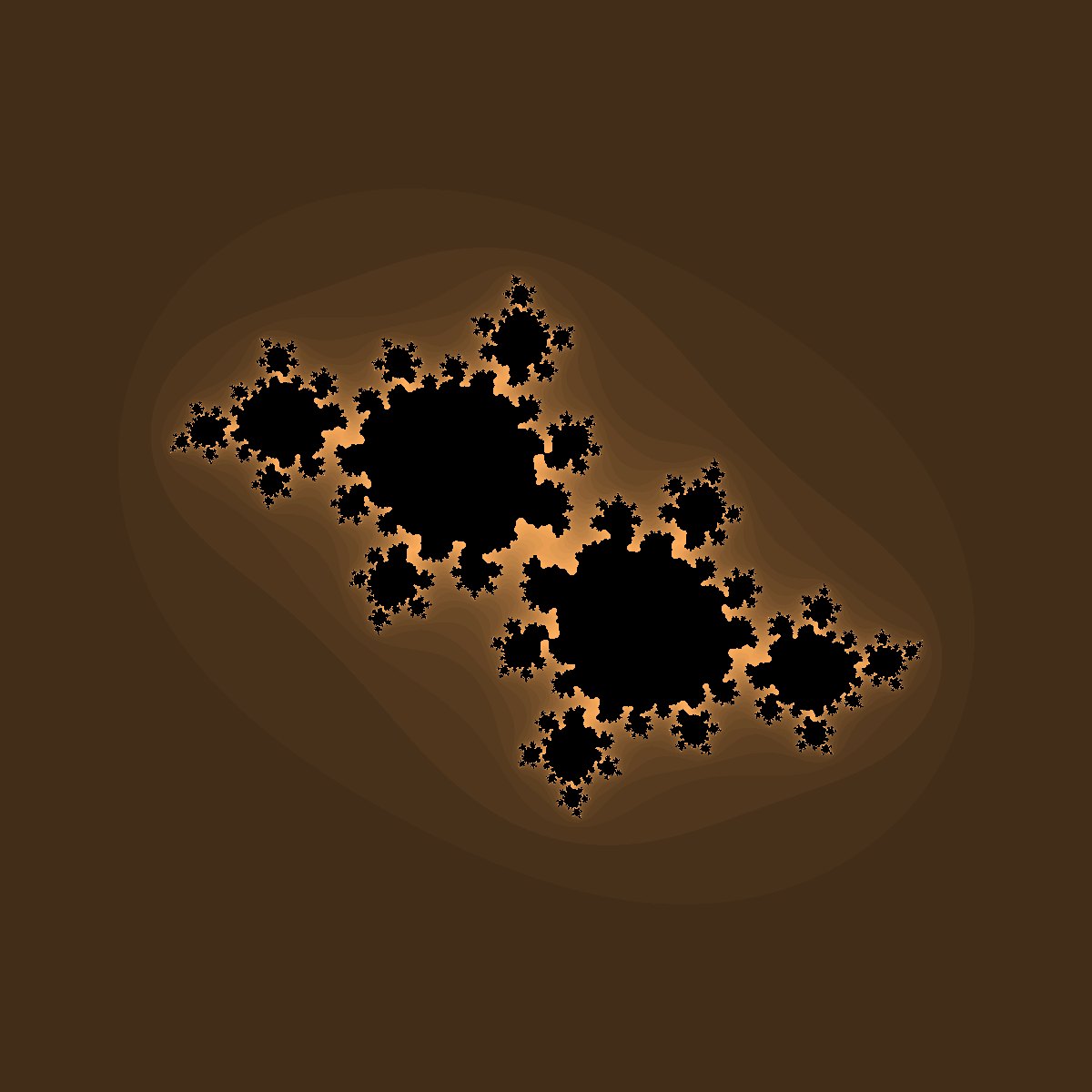

Same rule; gone() counts the steps before a point leaves, and the count is a colour: black for never, brighter the longer it stayed. The outside now shows how close it came.

Open the live sketch › — drag c · try −0.8 + 0.16i

06 · D8 · ADD C

Which c come back?

Python has i built in: 1j. 1j * 1j is -1, and z * z + c works whether c is -1 or 1j.

Say the six values for c = -1 before you run it. Then fill in the blank.

Now c = 1. Then -2, 0.25, 1j. Which settle, which come back, which leave?

06 · MANDELBROT

Every c on the left is a picture on the right.

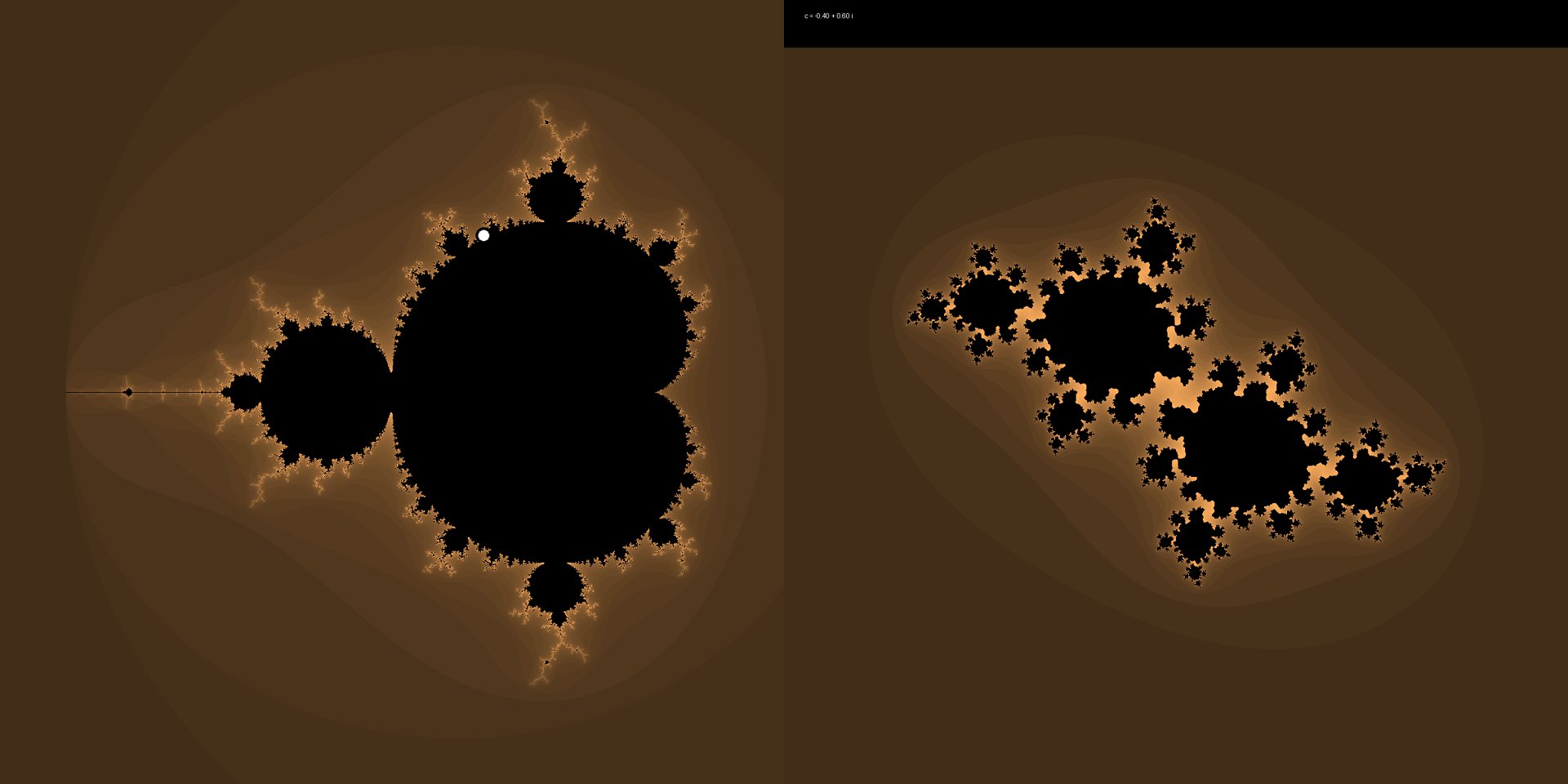

Left: the drill for every c at once — start at 0, square, add c, forty times. Black if it comes back, coloured by how fast it leaves. That is the Mandelbrot set. Right: the Julia set of the c under your mouse. Inside the black it is one piece; outside, it is dust.

Mandelbrot, 1980, on an IBM at Yorktown Heights: the first picture of this set was a line printer's asterisks. Every point of it is a whole picture; the rule is one line.

Open the live sketch › — move the mouse over the left picture

07

Plotting

THE LIBRARY RUNS THE LOOP; YOU STILL CHOOSE THE AXES

07 · MATPLOTLIB

Eight lines, and the loop is gone

import json
import matplotlib.pyplot as plt

d = json.load(open("data/tides-QUB-2026.json"))
row = d["data"][259]          # 17 September
heights = [float(v) for v in row[2:]]
hours = range(1, 25)

plt.plot(hours, heights)
plt.xlabel("hour")
plt.ylabel("metres above chart datum")
plt.savefig("out/tide-day.png", dpi=150)
plt.show()

the file comes from data/, the picture goes to out/ · both are committed

07 · FIVE WAYS

The same numbers, five ways

a line · bars · the clock · thirty days overlaid · September as a grid, one row per day, one cell per hour

07 · THE MOON · MULTIPLE CHOICE

When are the tides biggest?

A New and full moon

B Half moon

C The same all month

D When it rains

ClassPoint · multiple choice — answer on the projector

07 · THE MOON

Five lines of astronomy

from datetime import date
from tides import load_year

NEW_MOON = date(2000, 1, 6)     # a known new moon

def moon_age(day):
    return (day - NEW_MOON).days % 29.53

days, ranges = [], []
for day, heights in load_year():
    if day.month != 9:
        continue
    days.append(day.day)
    ranges.append(max(heights) - min(heights))

plt.bar(days, ranges)
plt.savefig("out/moon.png")

daily range against the day · the moon marks come from moon_age

07 · THREE NUMBERS

Three numbers a point, and the map draws itself

Every earthquake of the last month: (lng, lat, magnitude).

• Two numbers become position — longitude across, latitude up. That is the cheapest map projection there is, and it is a transformation you did not write.
• The third becomes size. It could have been colour.

Nobody drew the coastlines. The plate boundaries drew themselves.

USGS, magnitude 2.5+, one month · 2,130 points, largest 6.7

07 · A FRAME IS A FUNCTION OF TIME

Animation is a loop with a picture in it

One more number, one more dimension: i, which frame it is.

def frame(i): draws the first i hours — nothing else changes. The library calls it 24 times and saves the pictures in order.

A function of time is all an animation is. The hand is the hour it is drawing.

Open the live sketch › — it sweeps the day · click to start it again

07 · MAKE IT MOVE

Ten lines, and it is a GIF

from matplotlib.animation import FuncAnimation

fig, ax = plt.subplots()

def frame(i):                  # i counts up: 0, 1, 2, ...
    ax.clear()
    ax.plot(hours[:i], heights[:i])

anim = FuncAnimation(fig, frame, frames=25, interval=80)
anim.save("out/tide-clock.gif", writer="pillow")

pfad/week03/animate.py · needs pillow, which the script block asks for

08 · TWO PATHS

Both of these are assignment 2

The designer. Pick the chart the dimensions ask for. Label the axes. One message per picture.

Someone who was not in the room has to get the answer without you next to them.

The artist. The numbers are material. Week 2's rings do not tell you the current at 14:00 and never meant to.

The picture need not explain itself — but you still say where the numbers came from, and they are still real measurements.

designer
  one question, one picture
  axes labelled, units named
  the source, as a link

artist
  the numbers are the material
  the rule is yours
  the source, as a link

both
  it runs on somebody else's
  machine, from a cached file

08 · TWO PATHS · ONE EXAMPLE

What assignment 2 can look like

Week 2's current data, five days of it, with the two numbers the rings threw away put back: longitude and latitude. Every arrow returns to its place in the sea; 120 hours become 120 frames, ten tides in ten seconds.

• to_xy — the bearing into a vector, as on the clock
• to_pixel — the round Earth onto the flat map tiles
• frame(i) — one hour into one picture

week03/currents.py · --drift lets 2,500 specks of water ride the arrows instead. One published file, one picture nobody could draw by hand.

github.com/sd5913/tidal-streams — the finished repo · sd5913.github.io/tidal-streams — the page, live

08 · TWO PATHS · PUBLISHED

The page builds itself

The same arrows once more, as a web page: currents_web.py writes one HTML file with folium, and the browser does the drawing — pan, zoom, a play button.

Open the file on your laptop. If it plays there, it plays anywhere.

Then one workflow file from assignments/pages.yml: on every push, GitHub runs the same command you ran and publishes the result at you.github.io/your-repo.

site/ is never committed. It is made fresh from data/ every time.

on:
  push:
    branches: [main]

jobs:
  build:
    steps:
      - uses: actions/checkout@v4
      - uses: astral-sh/setup-uv@v6
      - run: uv run currents_web.py
      - uses: actions/upload-pages-artifact@v3
        with: { path: site }
  deploy:
    needs: build
    steps:
      - uses: actions/deploy-pages@v4

QUESTION · SHORT ANSWER

Your phenomenon, and where its numbers come from.

One line. For example: rainfall · HKO daily extract · JSON.

Not sure yet? Say the phenomenon on its own and we will find you a file.

ClassPoint · short answer — answer on the projector

09

Workshop

YOUR NUMBERS, YOUR REPO, YOUR FIRST PICTURE

09 · WORKSHOP

The tutorial is in the repo

Everything for the next two hours is one folder in the course repo, and the walkthrough is its README:

• github.com/sd5913/pfad · week03/README.md
• git pull brings it down; uv run tides.py is the first thing it asks for. What uv run does: reference/uv.md.
• No clone, or a lab machine you have not used? Download and double-click setup.bat.

Everything in week03/ runs from the cached files in data/, so it works with the wifi off. Leave with a repo, a data file and one picture in it.

09 · WORKSHOP

Two hours

0:00 uv run tides.py

The year, cached to data/, and today's 24 numbers as a text chart. D2 on the real file.

0:15 One day, four ways

plot_day.py, tide_clock.py, tide_month.py, moon.py. Predict, run, change one knob.

0:40 Make it move

animate.py sweeps the clock and writes a GIF into out/.

0:55 Three numbers

earthquakes.py — a map sized by magnitude; currents.py — week 2's arrows back on the map, moving.

1:10 Same idea, messier

typhoons.py — an HTML table, wind against pressure.

1:20 Your repo

Use the template, cache your file, one plot, the check, the URL on Canvas.

1:50 Swap screens

Your plot on your screen, your neighbour's on theirs. One sentence each: what does it hide?

1:55 Next week

Read teaching PR #3. React or comment: what do you want more of?

See you next week

Week 4: interfaces. Assignment 2 is due Sunday 4 October.

SD5913.GITHUB.IO/TEACHING
